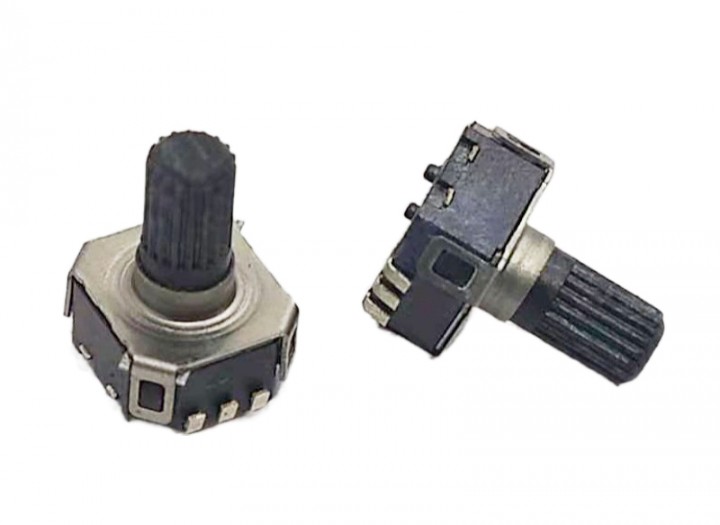

EC06 미니 크기 6x6mm 표면 실장 로터리 샤프트 인코더 스위치 포함
6x6mm, Surface Mount, Rotary Shaft, Switch function, Incremental Encoder
1, .Flux build-up prevention is taken through inserting molding around the element with resin, it's performance is more steady.
2, Long life 30,000 cycles min, Have a good feel of operation, long service life
3, Small size and good sealing, which can meet the reflow soldering
4, The product is suitable for portable radios, small stereos, and other household appliances, the related electronic equipment, primarily as adjust the volume, adjust the temperature, frequency, function switch and so on.
| 전기적 특성 | |
| Rated Power | DC 5V 10mA(1mA Min.) |
| Fluttering(Contact) | t1,t3 |
| Rotary Noise | t2 |
| Phase-Difference | >0.08T |
| 절연 저항 | More than 10MΩ at DC50V 1mA Withstand voltage1 minute at AC 50V 1mA |
| 내전압 | AC 300V 1A for 1 minute |
| 기계적 특성 | |
| Total Rotational Angle | 360° Continuous |
| Detent Torque | 50gf.cm~150gf.cm(at 5~35ºC) |
| Number and Position of Detents | 12 Detents (Angle: 30°±3°); 24 Detents (Angle: 15°±3°) |
| Rotational Torque | 10gf.cm~90gf.cm |
| Push-Pull Strength | 5.0Kgf Min for 10sec. |
| 내구성 | |
| 작동 온도 범위 | -40ºC~+85ºC |
| Rotational Life | 30,000 Cycles Min |
| Cold test | -40±3ºC for 96H , CR is 200mΩ Max; IR is 100MΩ Min |
| Dry heat for long term | 85±3ºC for 96H,CR is 200mΩ Max; IR is 100MΩ Min |
| 습도 | 40±2ºC, 90-95% RH for 96H, CR is 200mΩ Max;IR is 100MΩMin. |
| Temperature cycles | -20ºC~+70ºC, 5 cycles, CR is 200mΩMax, IR is 100MΩ Min. |
| Soldering Condition | Dip soldering: 260 ±5°for 5Sec.Manual soldering: 350±10°3Sec. Max |
| Switch Characteristics | |
| Contact Resistance | 100 mΩ Max. at 5V DC, 1 mA. |
| Switch Rating | DC 5V 10mA (1 mA Min.) |
| Switching Travel | 0.5±0.3mm |
| Operating Force | 550±300gf |
| 절연 저항 | More than 10MΩ at DC50V, 1mA |
| 내전압 | 60V AC, 1mA for 1min. |
| Switch Life | 30,000 Cycles Min |
